T Type Plastic Screw Circular Led Strip Light Splitter Electrical Easy Installed Waterproof Cable Connector

Name: T Type Plastic Screw Circular Led Strip Light Splitter Electrical Easy Installed Waterproof Cable Connector
Brand: STARPEY
Price: 3 USD

Quality T Type Plastic Screw Circular Led Strip Light Splitter Electrical Easy Installed Waterproof Cable Connector for sale

Brand Name : STARPEY

Model Number : EW-M20T

Certification : Rohs

Place of Origin : Shenzhen,China

MOQ : 1000 pcs

Price : US3/ pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000000 psc per month

Delivery Time : 15-25 work days

Packaging Details : bag

Type : Adapter

Application : Electrics,such as LED lightings, outdoor lightings

Contact Now

Product Description

ELECTRICAL CHARACTERISTICS

Number of Poles: 3Pin,4Pin

Operating current:24A

Operating voltage:400V

MECHANICAL CHARACTERISTICS

Protection against solid/water: (IP)IP68(4m, 365 days)

CABLE CHARACTERISTICS

Wire cross-section min.-max.:(stranded cable)0.5mm² - 2.5mm²

Wire cross-section min.-max.:(solid cable)0.5mm² - 2.5mm²

Cable Diameter: min-max5-9mm,9-12mm
(for cables with diameter cables please take the proper accessory)

T Type Plastic Screw Circular Led Strip Light Splitter Electrical Easy Installed Waterproof Cable Connector

Product Advantages

T Type Plastic Screw Circular Led Strip Light Splitter Electrical Easy Installed Waterproof Cable Connector

Details

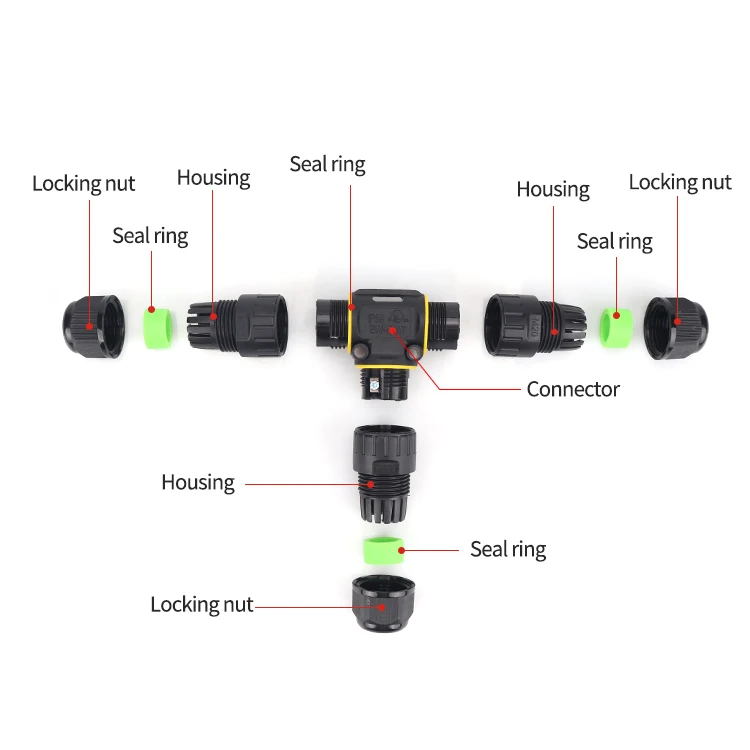

MATERIAL CHARACTERISTICS
Connector housing	PA66 UL94 V2
Cable gland	PA66 UL94 V2
Sealing	silicone
Grommets	silicone
Contacts	brass
Screws	Zinc
Material properties	Halogen Free
Operating temperature range	-40℃/+105℃

Notice:

If you have any requirement for such products pls get in touch for our offers.

our email add is sales@starpey.com

T Type Plastic Screw Circular Led Strip Light Splitter Electrical Easy Installed Waterproof Cable Connector Images
